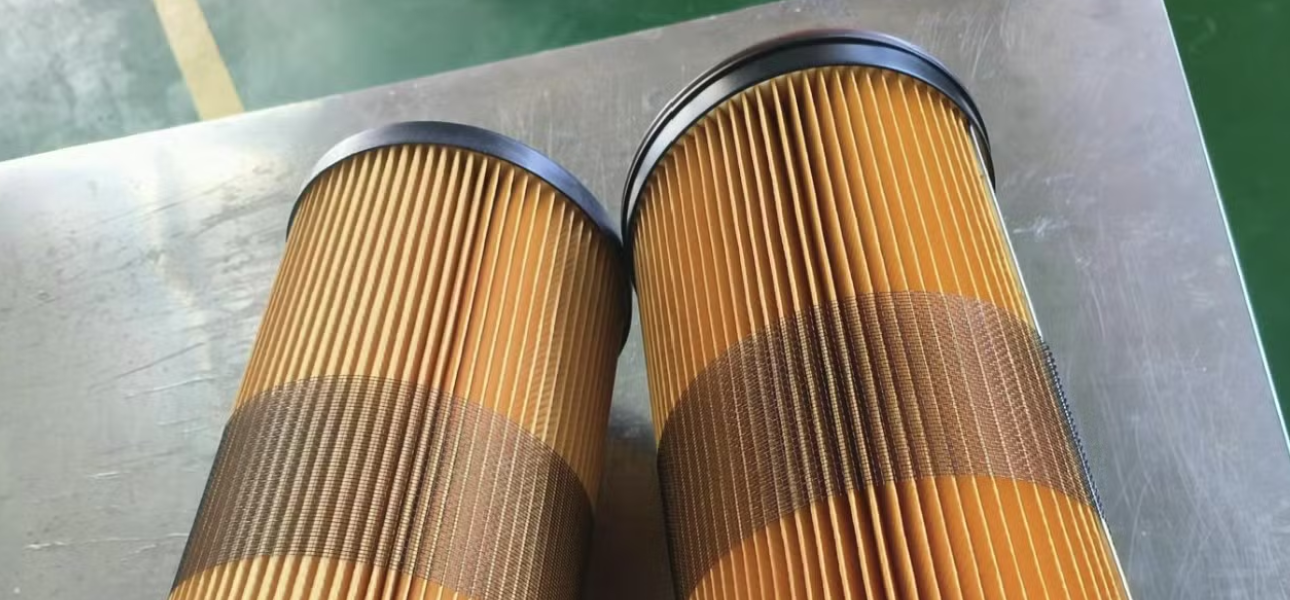

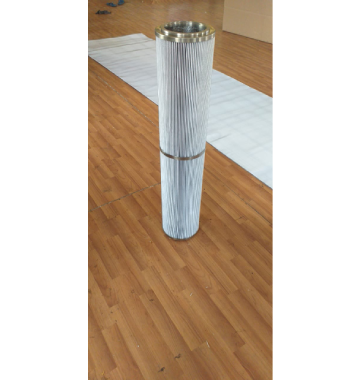

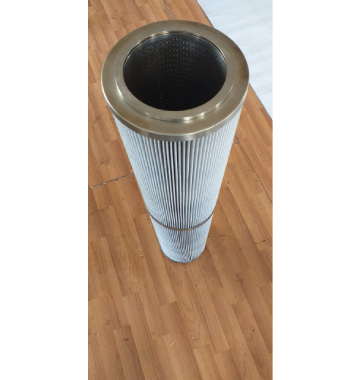

Superior Glass Fiber Filter Cartridges (With SS Core/Cage)
The SSF Superior Glass Fiber is a filter cartridge, which has been especially made
for industrial application and oil industry. It is used for fine clarification of different types of
oils, water, dyes and solvents. The cartridge is designed to work ,high temperature application of 200°C
and a maximum differential up to pressure drop of 2 bars. The available micron ratings are
1M, 2M, 5M & 10M and are absolute rated.
They have a huge advantage over PP Pleated filter cartridges as they are absolute rated at the
given micron rating and have high Temperature & dirt holding capacity due to sub – micron fibre diameter.
Features & Benefits:
- High surface area filter media.
- Exceptionally high flow rates with low pressure drops.
- High permeability to air.
- Can be operated at elevated temperatures.
- Excellent wet strength for easy handling and filter integrity.
Filter media: 100% Microglass fiber
Support media: Polypropylene
Cartridge MOC: Polypropylene
‘O’ Ring/ Gaskets: Silicone/ EPDM
Double open end – DOE
Code 7S (226- double ‘O’ Ring / fin)
Process Water
Wines & Flavoured drinks
Bioprocessing of food products
Distilled spirits & bottled water processes
Inks & Coatings
Plating solutions
Solvent filtration
Oil and gas production
Photographic film solutions
