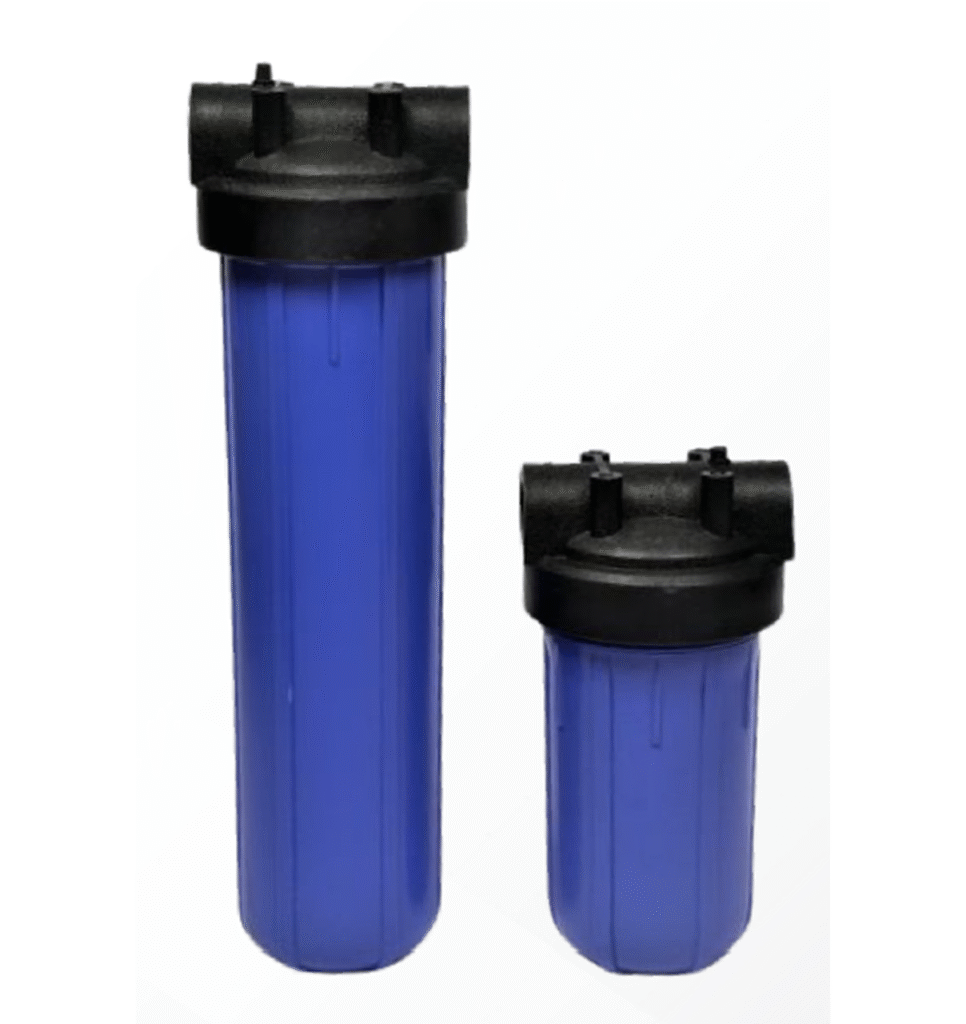

PP Cartridge / Bag Filter Housing
SS filters offer FLOWFILT PP molded opaque and transparent filter housings that are made using polypropylene. These housings are known for its chemical resistance. The housing can accommodate single cartridge of lengths of 125, 250 or 500 mm. They come in two sizes-standard and jumbo filter housing-depending upon the OD of the filter cartridge. They can be used in place of costly stainless steel filter housings.
Features & Benefits
- Low pressure drop design
- High flow rates
- Positive sealing
- PlEasy to install as well as maintain
- Standard & big blue
- Excellent chemical compatibility
Applications
- Process water
- Process fluids
- Reverse osmosis prefilter
- Beverages
- Plating solutions
- Fine chemicals, inks & dyes
Products & Specifications
Product Specifications
MOC
Polypropylene Bowl — Blue reinforced material (Opaque) or clear (transparent)
Length of Filter cartridge
5" / 10" / 20"
Inlet/Outlet
¾" to 1.5" BSP
'O' ring connection
Silicon, EPDM
Vent
Pressure relief button
Max. Operating Temperature
50 °C
Max. Operating pressure
3.5 bar
Housing color
Blue Bowl / Black cap (Opaque) — Transparent bowl / black cap (Transparent)
Configuration of cartridge
Double open end
