NAS Oil Filtration Systems
SS Filters Pvt Ltd is a technology based filter company which uses its vast experience and core knowledge to upgrade and develop filters which are not only efficient but economical too. Manufacturer & exporter. MSME registered, SSI Unit & ISO 9001:2015 certified. Since 20 years in This Market.
General Lube market
- Demand for oil & gas increased due to 100% FDI in many sectors.
- Indian lubricant market has grown at 18.6% in last 6 years.
- India - 3rd largest Lubricant Giant with market size 2.5 billion litres after America & China.
- Industrial Lubricant - more than 54% of total market share.
Lubricant contamination
- Particle contamination - No 1 cause
- 82% of component wear is particle induced - as stated by STLE & NRCC
- A sample of lubricant may appear to be clear but actually contains many microscopic particles like, dust, sand, metal particles etc
Benefits of clean oil
- Keeps Hydraulic system clean and particulate free
- Reduce downtime of production and increase efficiency of equipment.
- Usage of NAS Oil increases Lubricant Life.
- Increases the life of gears, bearings etc.
| Final ⇒ Initial ↓ |
*/20/17 | */19/16 | */18/15 | */17/14 | */16/13 | */15/12 | */14/11 |
|---|---|---|---|---|---|---|---|
| */26/23 | X 2.5 | X 3 | X 3.5 | X 4 | X 5 | X 6.5 | X 7 |
| */24/21 | X 1.5 | X 2 | X 2.5 | X 3 | X 4 | X 5 | X 6 |
| */22/19 | X 1.1 | X 1.3 | X 1.7 | X 2 | X 2.5 | X 3 | X 3.5 |
| */20/17 | -- | X 1.05 | X 1.3 | X 1.4 | X 1.7 | X 2 | X 2.5 |
| */19/16 | -- | -- | X 1.1 | X 1.3 | X 1.5 | X 1.7 | X 2 |
Potential useful life extension of hydraulics from the initial to the final cleanliness codes.
Examples
- By using NAS value oil in compressor reduces the consumption of rotary screw compressors by 3% and extends bearing life by factor of 4.
- Reducing particle contamination in engine oil improves fuel economy by 2 to 3% in buses and automobiles.
- In a lab study of bearing, the microscopic wear debris initiated damage during the first 30 minutes on run-in and decreased service life. (All from machinery lubrication)

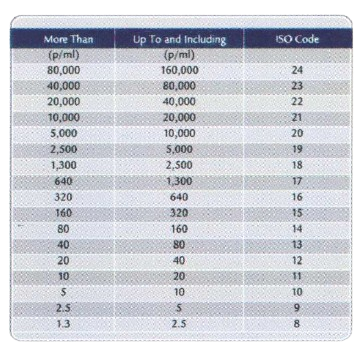

ISO TABLE
- ISO Cleanliness :-
- SSF will provide ISO cleanliness level of 16/14/11 (NAS 5)
- ISO 4406-16/14/11
- First number: Particles greater than 4 microns (16)
- Second number: Particles greater than 6 microns (14)
- Third number: Particles greater than 14 microns (11)
- Presently, the new lubricants are ISO 22/20/17(NAS 11) which clearly indicates how dirty the Lubricant is!!!
How NAS oil will help you to get more revenue ?
- Hardly anyone in the market offers NAS value oil
- Market Leader - Industrial, Automobile, Aerospace and Marine.
- The market is saturated & nothing new to offer.
- NAS Oil - Complete New Launch
SS FILTERS "USP"
- Normal Filtration 5-6 times circulation of oil

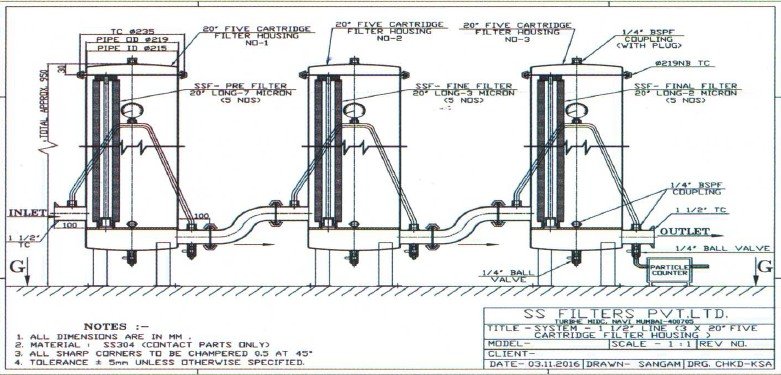

- SSF Lubricant Filtration System - Single pass giving NAS value 4 - 5.
- Helps save excess time, energy and money spent.
Economics
- Current Cost Rs 1.75 - Rs 2.5 per litre.
- SSF Cost Rs 0.5 to 0.6 per litre*.
- Manufacturers & own facility at Turbhe MIDC - Navi Mumbai.
- Become Market Leader - by providing ultraclean hydrualic & turbine oil.
- We are proud to say that Everything Is "Made In India".
